The CT213 series products are made of flame-retardant ABS engineering plastics or PC/ABS alloy plastic materials, and adopt ultrasonic welding technology to reduce the weight of the product as much as possible.
The products are made of nanocrystalline soft magnetic materials or silicon steel materials, with high precision, good linearity, compact structure and small appearance. The use of a rotating fixed base reduces packaging and transportation costs, and is easy to install. It is widely used in power distribution systems.

The product is output from the terminal block on the top of the shell, which occupies less height of the product, achieving the purpose of convenient wiring. During installation, it is more convenient to fix the transformer and then wire. And reduce the thickness of the product.

Features:

*There are many specifications and varieties, and the applicable current range is large.
*Two fixing methods, reliable and flexible fixing methods
*Flexible design, measurable and protective
*High precision: the precision can reach 0.1 level
*High overload multiple, small signal output can reach up to 12 times.
*Strong versatility and good interchangeability

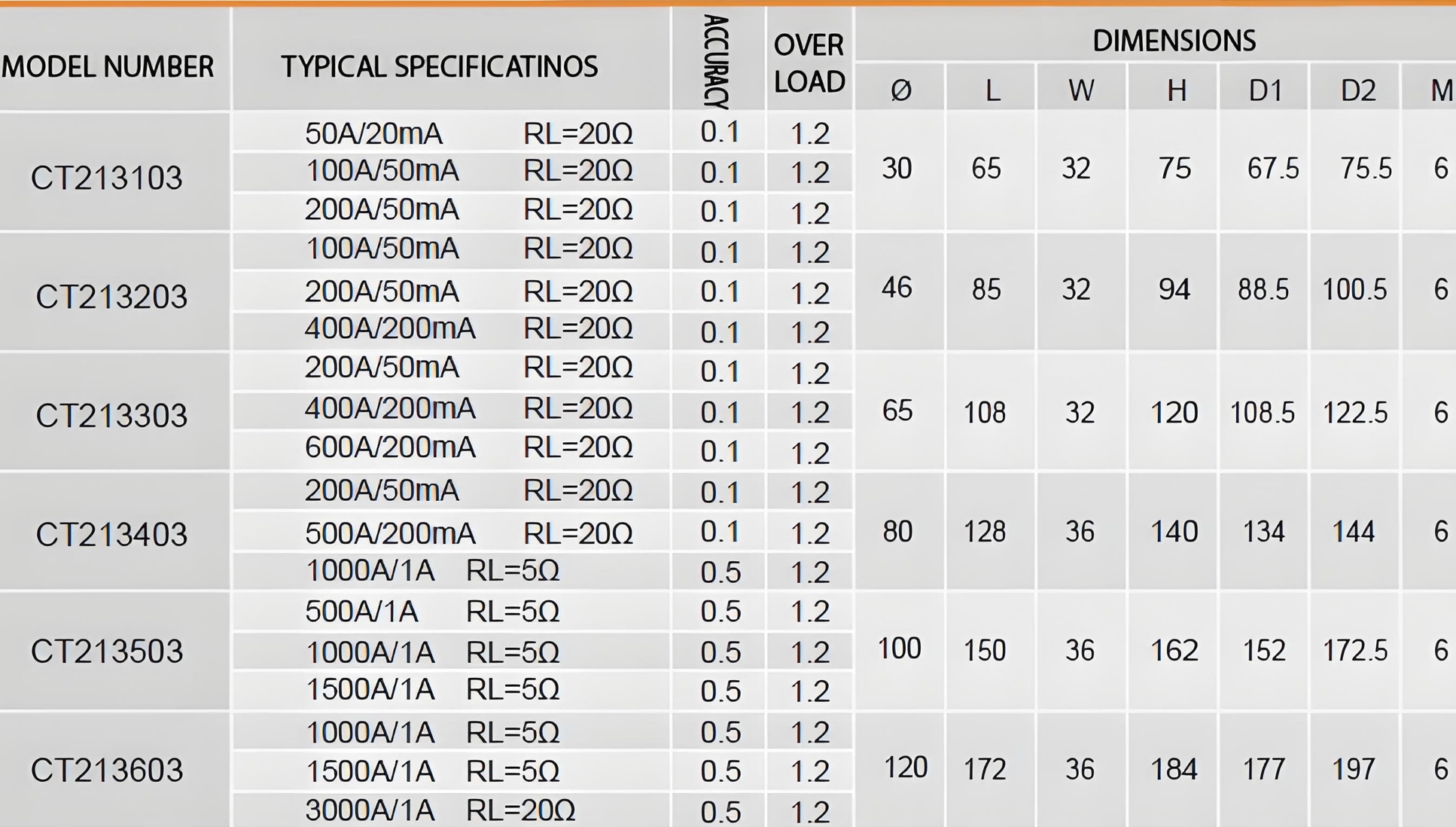

Product Specifications Table
