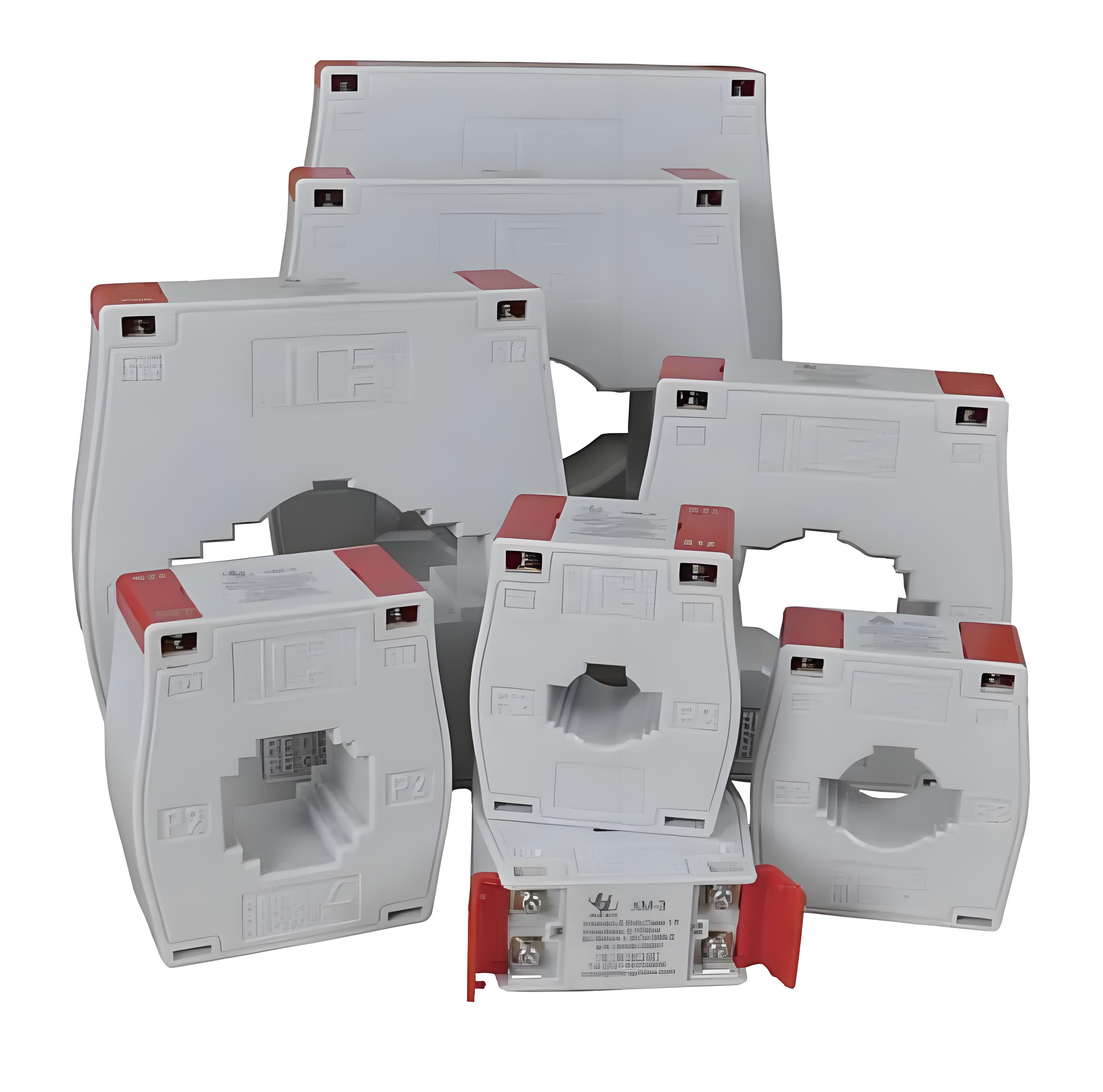

CTBH5 series products are made of flame-retardant ABS engineering plastics or PC/ABS alloy plastic materials, combined with epoxy resin casting process, with excellent waterproof and moisture-proof performance.
The product has been completely redesigned, with excellent structure and beautiful appearance. And it can be equipped with a terminal cover for one-time installation as needed, which can continuously provide reliable identification for the terminal wiring safety.
It is made of nanocrystalline soft magnetic materials or silicon steel materials, with high precision, good linearity, compact structure, small appearance, easy installation, and widely used in power distribution systems.
The product adopts terminal output, and can adopt parallel terminal output structure. Both S1 and S2 terminals have two parallel output terminals for easy wiring. It can also be designed with multiple ratios as needed to adapt to more installation environments.

This series of products is customized for customers, with a total of 7 models, suitable for cable diameters of 23mm-100mm, busbar widths of 20mm-100mm, and currents of more than 2000A.

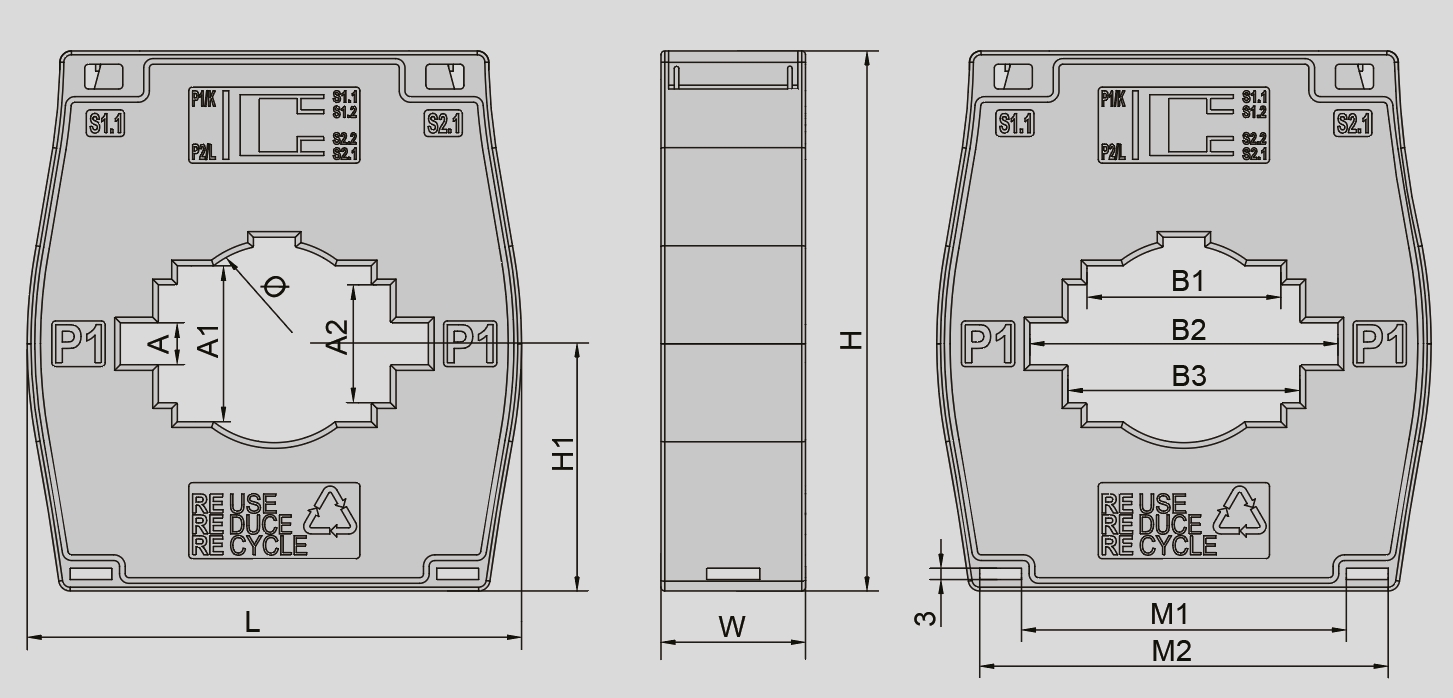

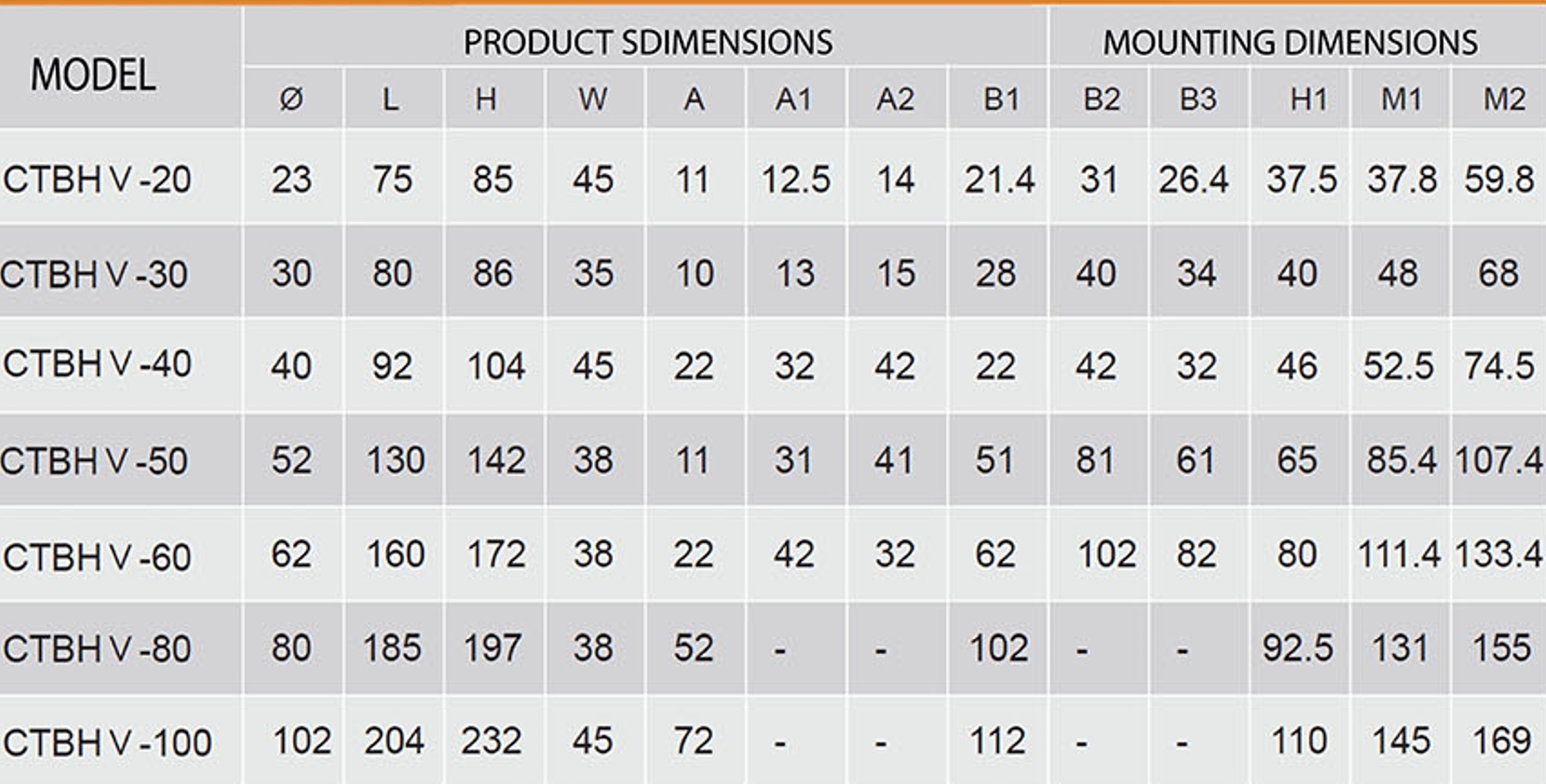

Product size table

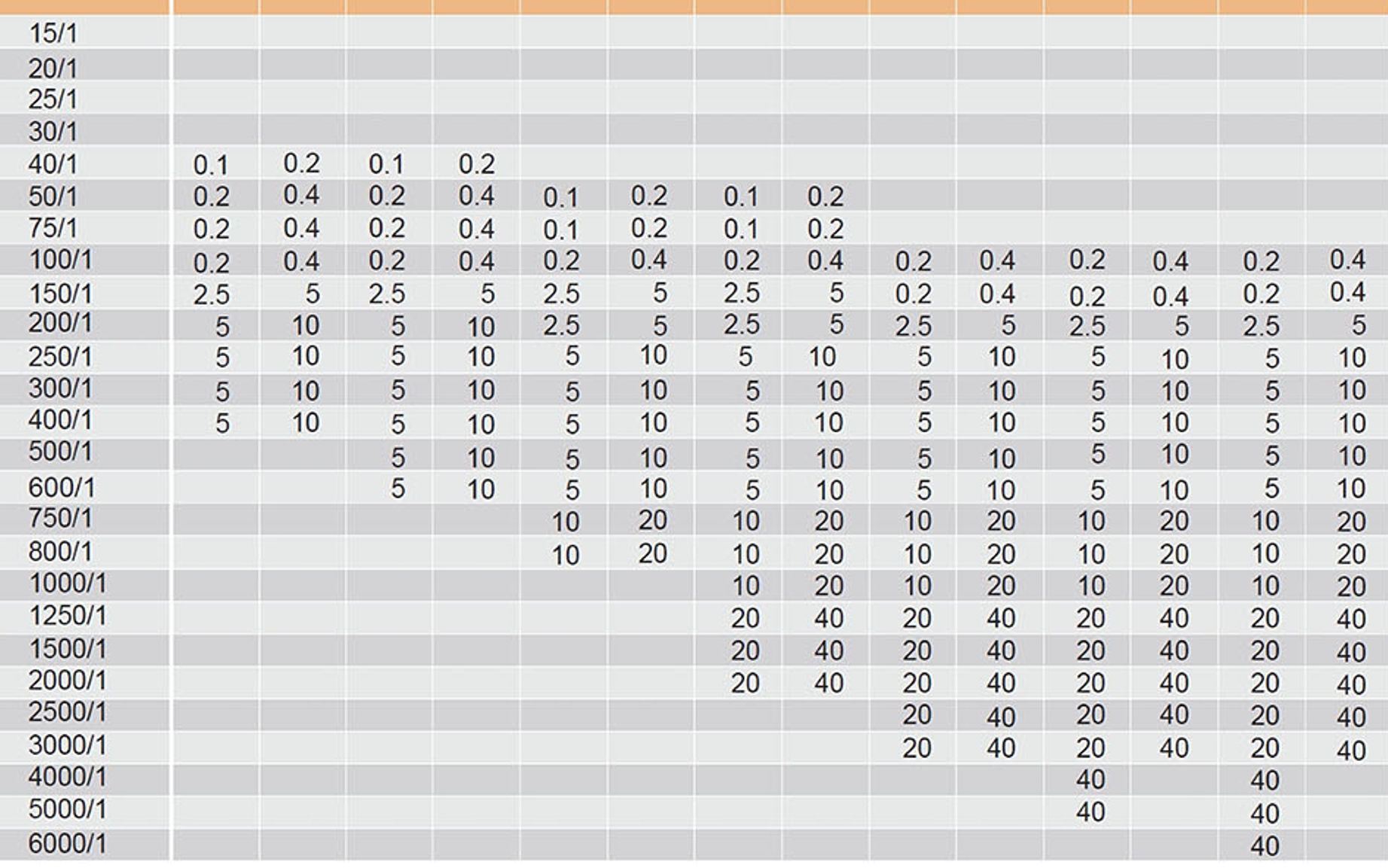

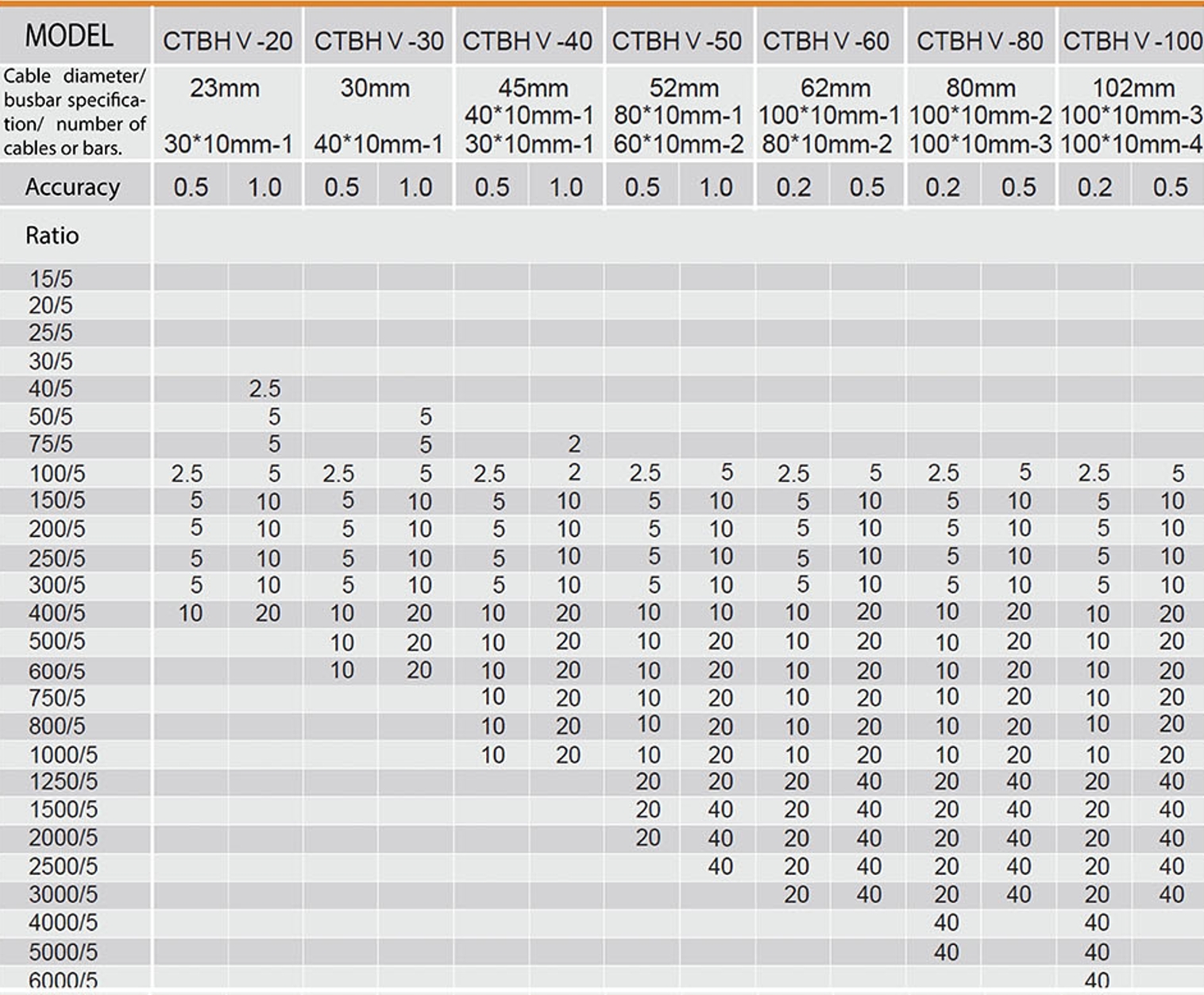

Technical parameter comparison table
